Product Information:
| Innolux G121XCE-LM1 Mechanical Details |
| Pixel Features : | Pixel Format | 1024(RGB)×768, XGA | Dot Pitch | 0.080×0.240 mm (H×V) |
| Configuration | RGB Vertical Stripe | Pixel Pitch | 0.240×0.240 mm (H×V) [105PPI] |
| Mechanical Size : | Display Area | 245.76×184.32 mm (H×V) | Outline Dim. | 249.0×187.5 mm (H×V) |
| Outline Dim. | 260.5×204 mm (H×V) | Outline Depth | 8.4/8.9 (Typ./Max.) mm |
| Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio | 4:3 (H:V) | Shape Style | |
| Holes & Brackets : | Side mounting holes (4-M2) on left, right bezel |
| Other Features : | Weight | 490/510g (Typ./Max.) | Surface | Antiglare, Hard coating (3H) |
| Innolux G121XCE-LM1 Optical Details |
| Basic Information : | Brightness | 1000 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Optical Mode | AAS, Normally Black, Transmissive |
| Viewing Direction | Symmetry | Response Time | 13/12 (Typ.)(Tr/Td) ms |
| Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | 6485K | Uniformity | 1.25/1.40 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 73% | sRGB | 93% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmittance | - |
Features:

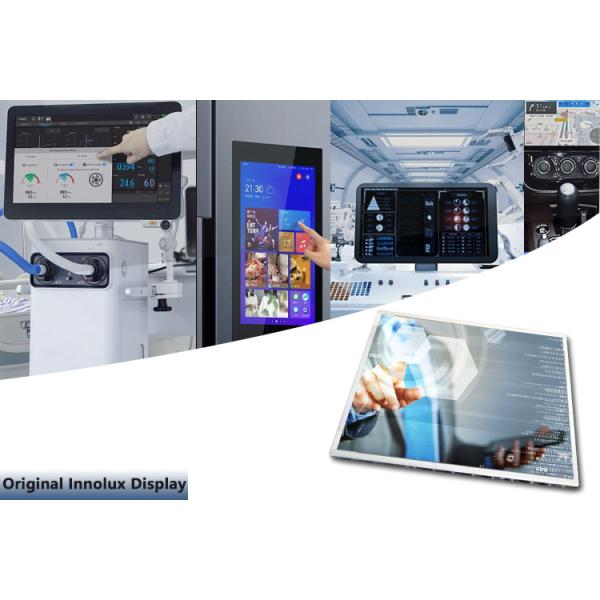

- Product Name:12.1 inch INNOLUX LCD Display
- Long LED Lifetime (hrs): 50K
- Active Area (W*H): 245.76*184.32
- High Luminance(nits): 1000
- Wide Viewing angle(RLUD): 89/89/89/89
- Type: IPS TFT LCD Display
- Application: Military LCD
- Features: High-quality Innolux display panel
One of the key features of the INNOLUX LCD Display module is its long LED lifetime of 50K hours. This ensures that the display remains bright and clear for an extended period, reducing the need for frequent replacements. The high contrast ratio of 1000 ensures that images and text are displayed with excellent clarity, making it ideal for use in industrial LCD monitors.
The viewing direction of the INNOLUX LCD Display module is IPS, which means that it offers a wide viewing angle and excellent color reproduction. This makes it suitable for use in applications where multiple people need to view the display from different angles. Its rugged construction and reliable performance make it a popular choice for use in industrial settings such as factories, warehouses, and other harsh environments.
Applications:
The INNOLUX G121XCE-LM1 has an impressive viewing angle of 89 degrees in all directions (RLUD) and an outline dimension of 260.5*204*8.9mm. This product has a 12.1-inch size and a resolution of 1024*768, making it perfect for displaying detailed images and videos.
The INNOLUX G121XCE-LM1 model is suitable for various product application occasions and scenarios. It can be used in industrial automation, medical equipment, gaming machines, and many other devices where a high-quality display is required.
Support and Services:
INNOLUX provides technical support and services for their LCD display products. This includes:
- Product consulting and customized design services
- Technical training and education services
- Product testing and verification services
- Product repair and maintenance services
- Logistics and supply chain management services
INNOLUX is committed to providing comprehensive and reliable support to ensure the best performance and longevity of their LCD display products.
Packing and Shipping:
| Innolux G121XCE-LM1 Carton Details |
| Box Type | Pcs/Box | Package LWH (mm) | G.W (kgs) |
| 18 | 465×362×314 | 10.9 |
Product Packaging:
- INNOLUX LCD Display
- Protective foam padding
- User manual
Shipping Information:
- Shipping Carrier: FedEx
- Estimated delivery time: 3-5 business days
- Tracking number will be provided
